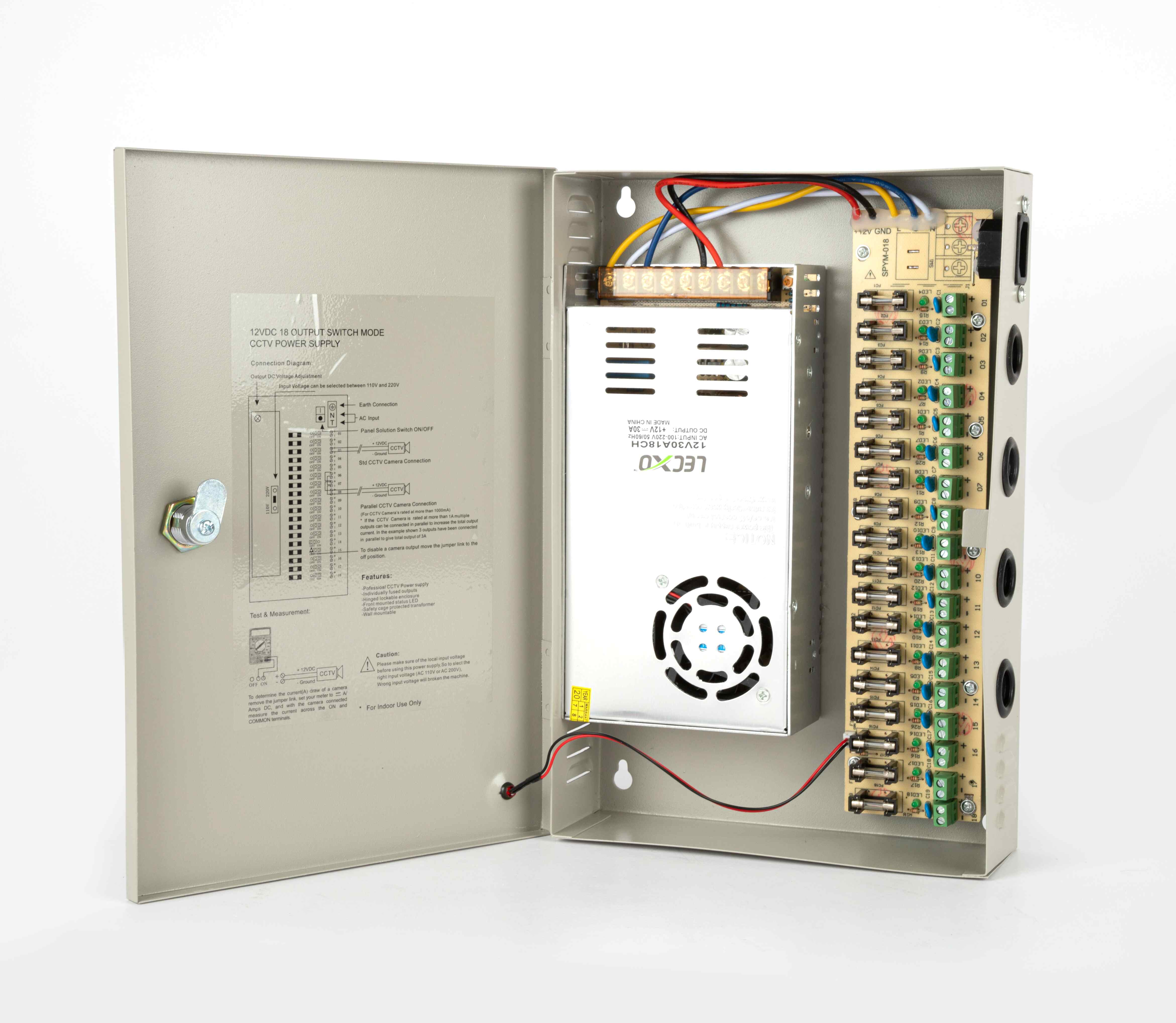

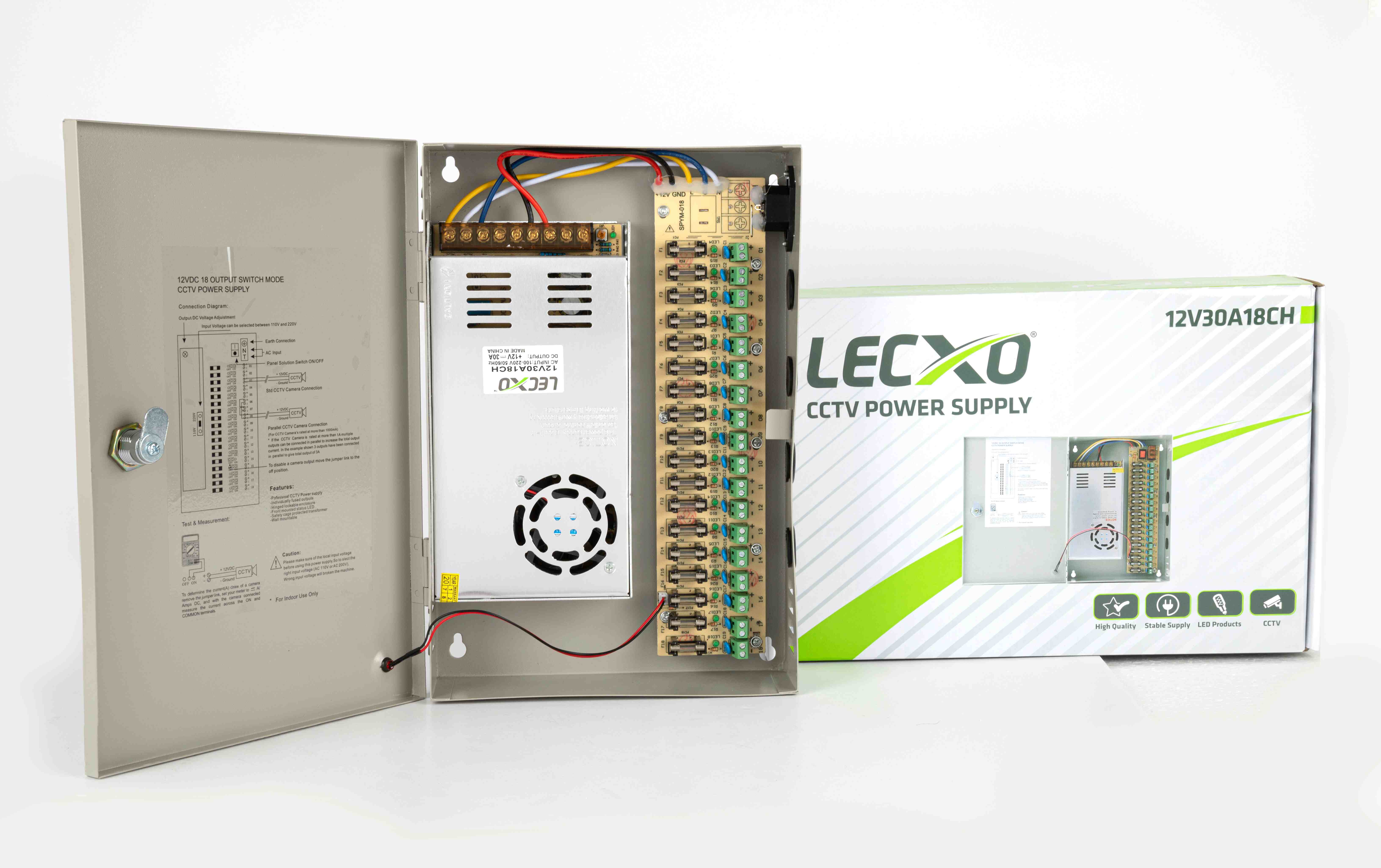

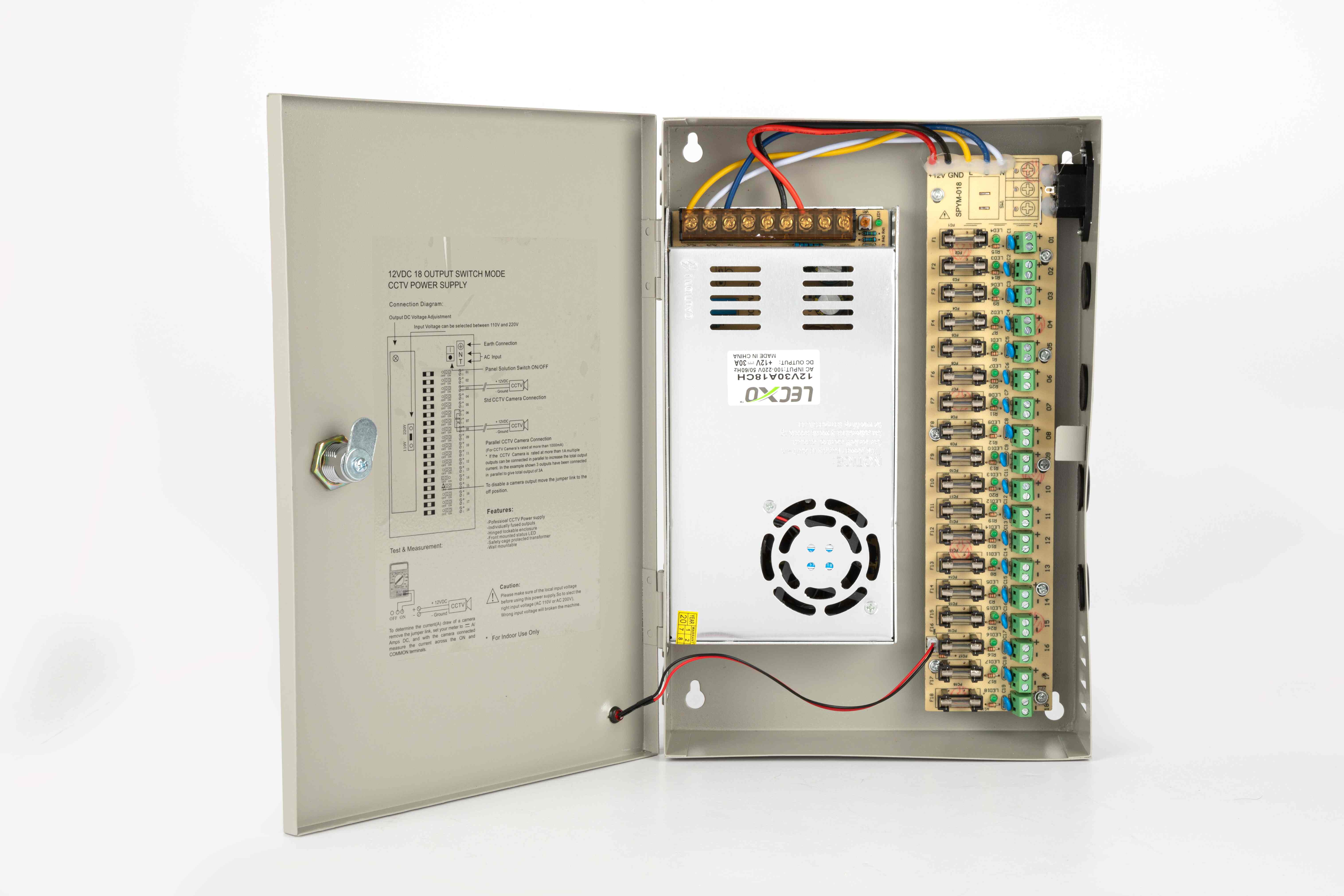

CCTV POWER SUPPLY (Metal)
Model Number : 12V30A18CH
Description :
  • DC VOLTAGE: 12V
  • OUTPUT POWER: 1-360W
  • CURRENT RANGE: 0-1.5 Amp (Each channel), Total 0-30 Amp for 18 channels
  • RIPPLE & NOISE (Max): 120mVp-p
  • VOLTAGE ADJ. RANGE: ±10%
  • LINE REGULATION: ±1.0%
  • LOAD REGULATION: ±2.0%
  • VOLTAGE TOLERANCE:  ±2.0%
  • VOLTAGE RANGE: 110VAC OR 220VAC Selected
  • AC CURRENT (Typ.): 4.5A/110VAC 2.5A/240VAC
  • FREQUENCY RANGE: 47-63Hz
  • INRUSH CURRENT (Typ.): COLD START 15A/115VAC 30A/260VAC
Place of Origin : China
